LED display for Kodi

Index, feed.

This builds on the ESP8266-based LED clock, but can also be used on its own.

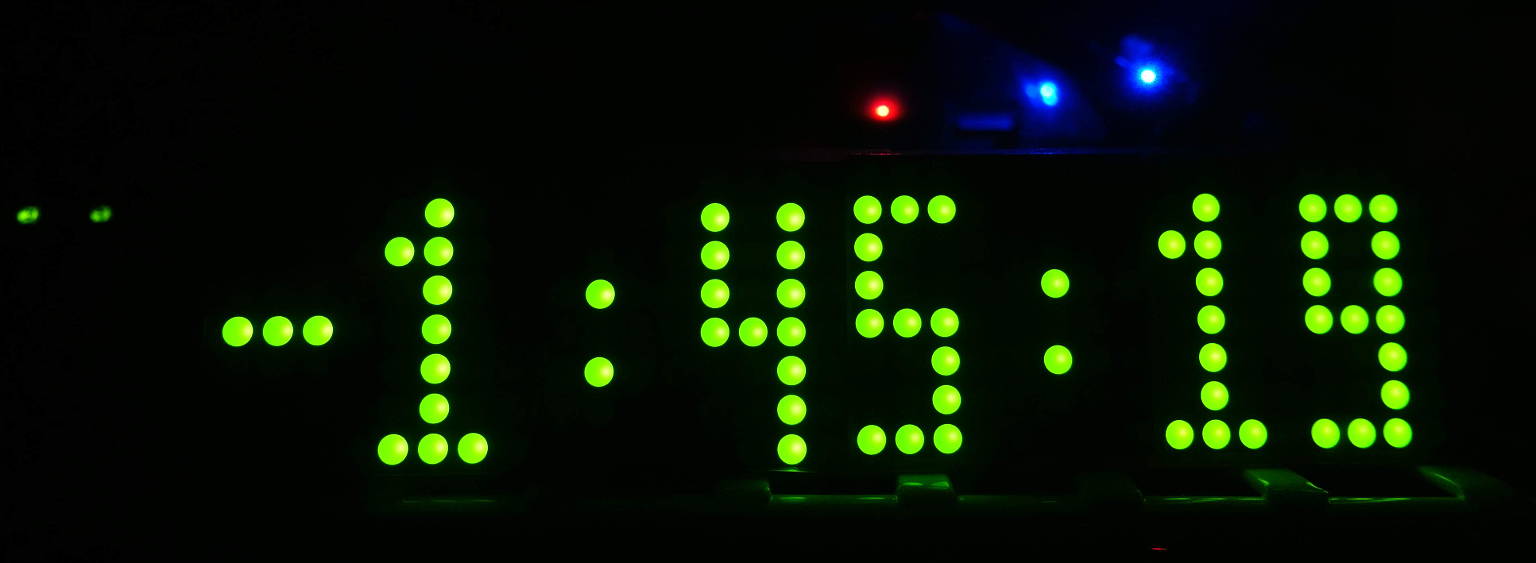

LED display showing 1h45m19s remaining

OSD (On-screen display) is one big innovation that I believe became commonplace in the 1990s: during this decade, TVs and VCRs lost their separate LCD or, more commonly, LED display, in favor of superimposing the information on the TV picture. This is mostly fine, as TVs were usually larger and more legible than the typical half-inch-tall LED display. However, this also means that one can't see how long remains on the program they are watching unless they pause it (to make the OSD appear), or accept having the time remaining being constantly displayed (which is ugly). The problem remains to this day.

The short program shown here allows having a display for time remaining on the music or video being played on Kodi.

Use

    kodi-progress --host HOSTNAME --port PORT [--echo]

Output examples:

## When nothing is playing:


## When something short is playing:
  -34:04

## When something long is playing:
-1:45:10

Code

Full program: kodi-progress.

• A poor-man's JSON-RPC client:

sub call($$$) {
    my ($ua, $url, $call) = @_;
    $call->{jsonrpc} = '2.0';
    $call->{id} = 'foo';

    return $ua->post($url,
                     'Content-Type' => 'application/json',
                     Content => to_json $call);
}

• Building a call to Kodi method Player.GetProperties:

sub player_status_call($) {
    my $player_id = shift;
    return {
        method => 'Player.GetProperties',
        params => {
          playerid => $player_id,
          properties => [qw(time totaltime percentage)],
        },
    };
}

• The main loop simply queries player with ID 1 (video), falling back to player 0 (audio) for its current track's duration and total time, to allow computing remaining time. This is a bit hairy, as both inputs are split into hours, minutes and seconds, requiring back and forth conversions to subtract and display:

while (1) {
    my $response = call($ua, $url, player_status_call(1));
    $response = call($ua, $url, player_status_call(0)) if is_error($response);

    my $msg = '        ';
    if (is_error($response)) {
        ;
    } else {
        my $response_object = from_json $response->decoded_content;
        my $r = $response_object->{result};

        my $time = $r->{time};
        my $len  = $r->{totaltime};

        my $time_s =
            $time->{hours} * 3600 + $time->{minutes} * 60 + $time->{seconds};
        my $len_s =
            $len->{hours} * 3600 + $len->{minutes} * 60 + $len->{seconds};

        if ($len_s > 0) {
            my $remaining_s = $len_s - $time_s;
            my $h = int($remaining_s / 3600);
            my $m = int($remaining_s / 60) % 60;
            my $s = $remaining_s % 60;

            if ($h > 0) {
                $msg = sprintf '%d:%02d:%02d', $h, $m, $s;
                $msg = '-' . $msg if $h < 10;
            } else {
                $msg = sprintf '-%d:%02d', $m, $s;
                $msg = sprintf '%8.8s', $msg;
            }
        }
    }

• Finally, the computed value is displayed on the terminal (if requested), or to the previously-built LED display, via UDP:

    printf STDERR "\r%s", $msg if $do_echo;

    my $cmd = pack 'C', 0x80;
    $sock->send($cmd . $msg) if $do_udp_send;
    sleep 0.45;
}

The code is very dumb and just updates the display about twice a second. It could be made more sophisticated and avoid sending updates that do not change from the previous state, or even attempt to synchronize with the rate of change of the input. This all seems a bit overkill.

Bonus

LED display showing 1h45m19s remaining

This is the same as the picture at the top of this article, except rendered as vector graphics instead of a photograph.
